ORV3 5500W Power Supply

Product number:

S5K5V510-0SDR

Features

S5K5V510-0SDR is an advanced AC-DC power supply engineered to meet the OCP standard. The innovative fanless design provides notable benefits in efficiency, reliability, heat dissipation, and operational lifespan. Specifically designed for high computing power and high-density data centers, it efficiently powers rack. Efficiency 98+% Wide Input Voltage Range Fanless version available for higher PSU reliability Long Life & High Reliability Fully Digital Control Versatile for All Water Cooling Applications

Category：Data center-related products

Category：ORV3 Server Power Series

Download

Details

Input
Model	S5K5V510-0SDR
Input voltage range	200~277Vac nominal
Input voltage range	47~63Hz
Inrush current	35Apk, cold start
Conduction EMI	Class A
Radiation EMI	Class A
Power factor	>0.9 beginning at 10% load
Hold up time	20ms at full load

Output
Output power	5500W
Output voltage	51.0V
Output accuracy	±0.5%
Efficiency	98+%
Load regulation	±0.5%
Ripple & Noise	200mV
Output current	108 A
Current share	<±5%

Other
Operating temperature	-5~55°C（Adaptable to Data Center Cooling Requirements）
Relative humidity	+10%~90%(Non condensing)
Storage temperature	-40~70 °C
Storage humidity	+5% ~95%(Non condensing)
ROHS compliant	Yes
Operating life	More than 5 years（30°C, 80%load）

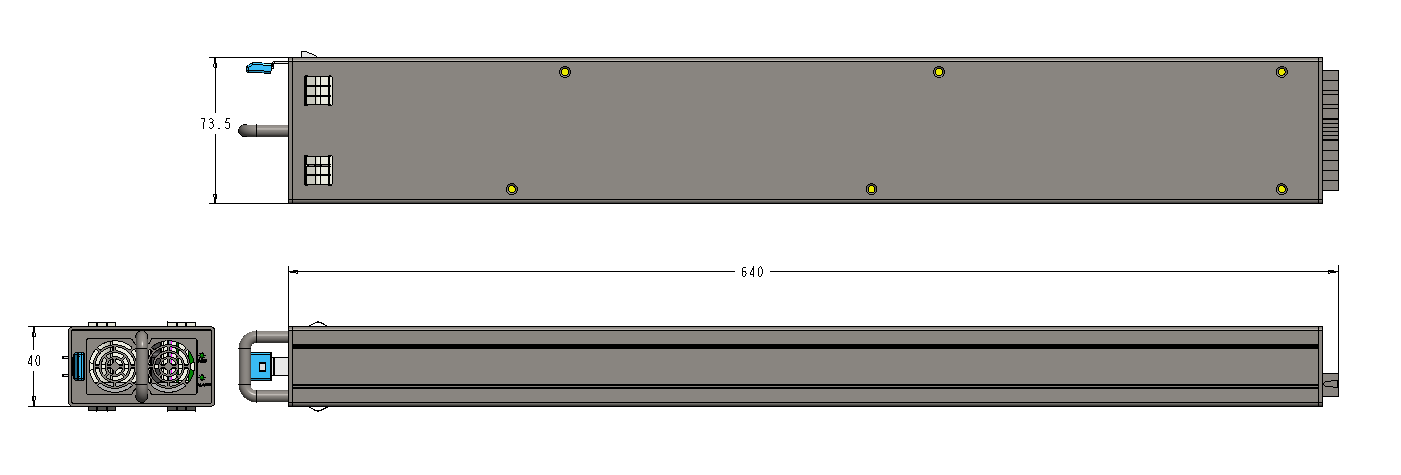

Mechanical

unit:mm
