ORV3 3000W Power Supply

Product number:

Y3K054RA0

Features

Y3K054RA0 is an AC-DC power supply that complies with the OCP standard. It is mainly used in high computing power and high density data centers to power rack servers. Using our original fanless design, it has obvious advantages in efficiency, stability, heat dissipation and operating life. High efficiency Wide input voltage High power factor Long life Fully digital control for high efficiency and reliability

Category：ORV3 Server Power Series

Download

Details

Input
Model	Y3K054RA0
Input voltage range	180~264Vac
Input voltage range	47~63Hz
Inrush current	35Apk, cold start
Conduction EMI	Class A
Radiation EMI	Class A
Power factor	>0.9 beginning at 10% load
Hold up time	20ms at full load

Output
Output power	3000W
Output voltage	51.0V
Output accuracy	±0.5%
Efficiency	97.8%
Load regulation	±0.5%
Ripple & Noise	200mV
Output current	62.5 A
Current share	<±5%

Other
Operating temperature	-5~45°C
Relative humidity	+10%~90%(Non condensing)
Storage temperature	-40~70 °C
Storage humidity	+5% ~95%(Non condensing)
ROHS compliant	Yes
Operating life	More than 5 years（30°C, 80%load）

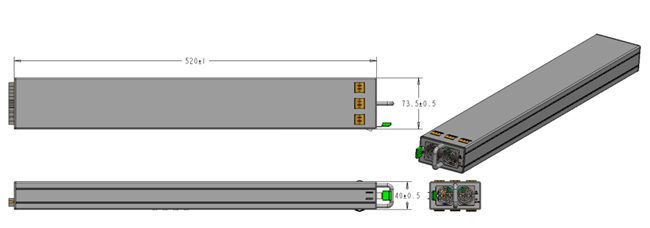

Mechanical

unit:mm

Keywords:
- Server power
- enhanced ORV3 PSU
- ORV3 compliant
