7500W Power Supply For ASIC
Product number:
Features
K7K5V120-0WSR is an AC-DC power supply with output power of 7500W. For immersion liquid cooling system, with wide input voltage range and efficiency up to 97.7%. This product is mainly used in the Virtual currency mining.
High efficiency
Wide input voltage
High power factor
Immersion liquid cooling
Fully digital control for high efficiency and reliability
Details
Input |
|
Input voltage range |
200~277Vac |
Frequency |
47~63Hz |
Power factor |
>0.99 |
THDI |
<5% |
Output |
||
Output power |
7500W |
|
|
Output1 |
Output2 |
Output voltage |
11.5~15.0Vdc |
12.3Vdc |
Output current |
534A |
2A |
Efficiency |
97.7%(Peak) |
|
Ripple & Noise |
<200mV |
|
Line regulation |
<0.5% |
|
Load regulation |
<0.5% |
|
Setup time |
<2S |
Other |
||
Cooling |
Immersion liquid cooling |
|
Protection |
Short circuit protection |
Yes |
Over temperature protection |
Yes |
|
Over current protection |
Yes |
|
Environment |
Operating temperature |
-40~40℃ |
Relative humidity |
20%~90% (Non Condensing) |
|
Altitude |
< 3000m |

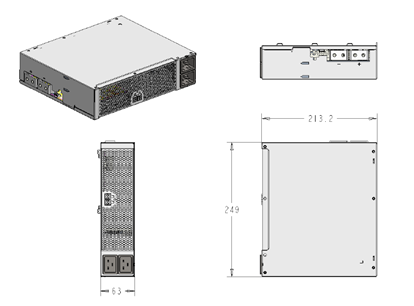

Mechanical
unit:mm
