5000W Power Supply For ASIC-Shenzhen Yiyuan Technology Co., Ltd.

5000W Power Supply For ASIC

Product number:

Features

K5K0V120-0WSR is an AC-DC power supply with output power of 5000W. With wide input voltage range and efficiency up to 97.7%. This product is mainly used in the Virtual currency mining. High efficiency Wide input voltage High power factor Fully digital control for high efficiency and reliability

Category：ASIC power supply

Download

Details

Input
Input voltage range	200~277Vac
Frequency	47~63Hz
Power factor	>0.99
THDI	<5%

Output
Output power	5000W
	Output1	Output2
Output voltage	11.5~15.0Vdc	12.3Vdc
Output current	343A	16.5A
Efficiency	97.7%(Peak)
Ripple & Noise	<150mV
Line regulation	<0.5%
Load regulation	<0.5%
Setup time	<2S

Other
Cooling		Air-cooling
Protection	Short circuit protection	Yes
	Over temperature protection	Yes
	Over current protection	Yes
Environment	Operating temperature	-40~40℃
	Relative humidity	20%-90%(Non Condensing)
	Altitude	< 3000m

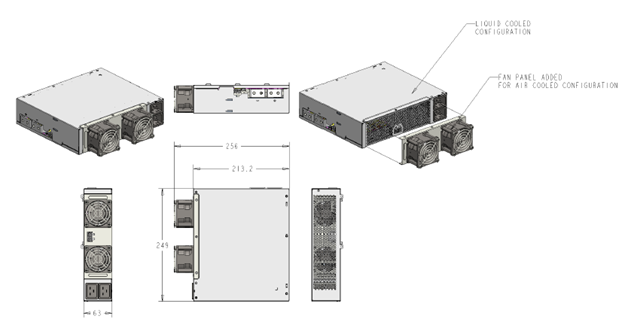

Mechanical

unit:mm
